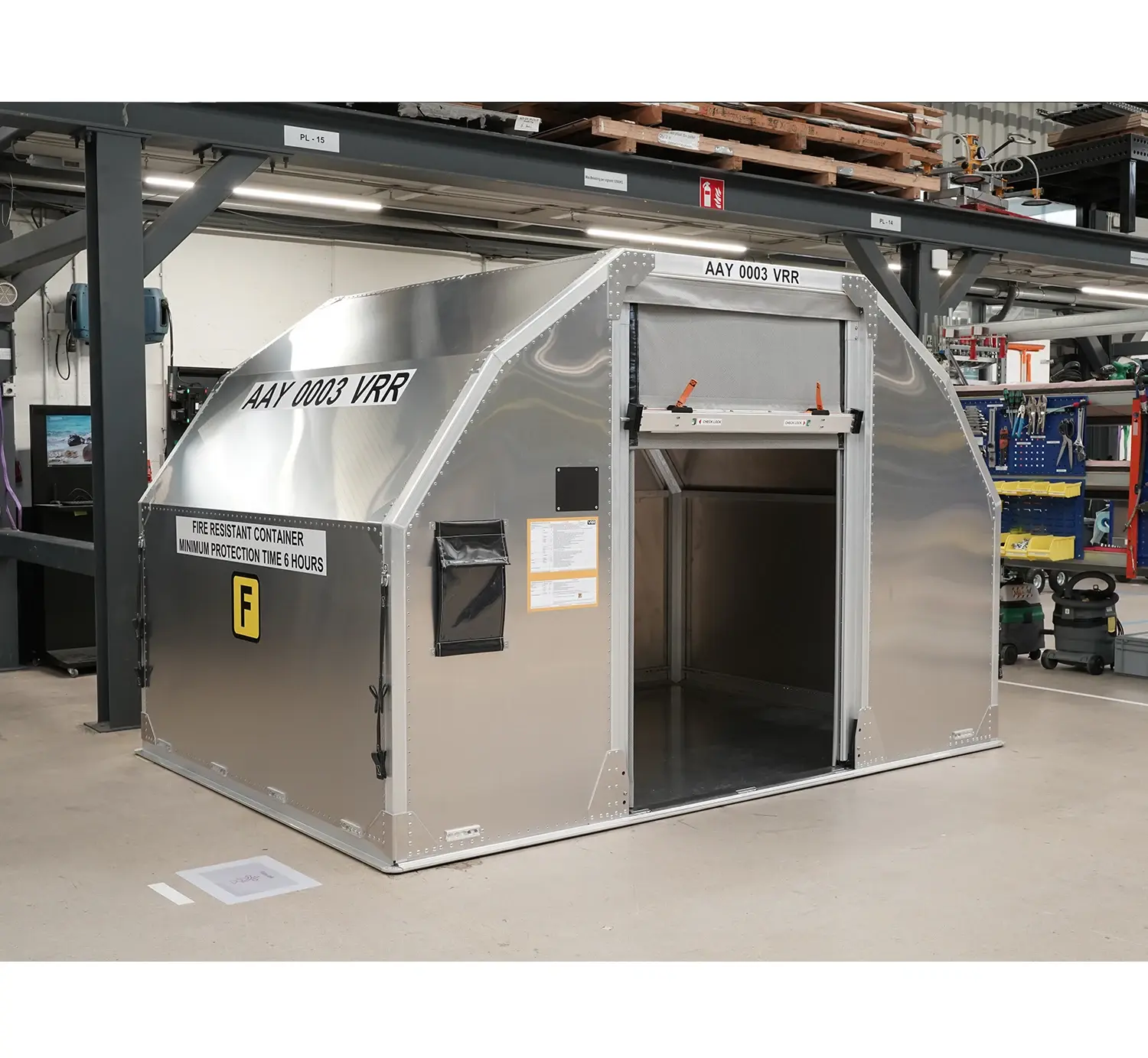

The AAY container fits perfectly the main deck of many narrow body freighter aircraft such as the Airbus 320F and 321F or the Boeing 727F and 737F. Typically equipped with a net and cover for use in the express industry, it can also be designed for more specific purposes.
Base size (L x W)
3,175 mm x 2,235 mm
125.0 inch x 88 inch
External dimensions (L x W x H)
3,175 mm x 2,235 mm x 2,026 mm
125 inch x 88.0 inch x 79.8 inch
11.6 m3 / 410 ft3
Tare weight = 220 kg / 485 lb
Max. gross weight = 6,804 kg / 15,000 lb
Nett weight = 6,584 kg / 14,515 lb
Reduce the size of your containers, not their capacity. Our collapsible AAY carries the same volume of cargo as a standard AAY, and it meets exactly the same air-worthiness requirements. However, when collapsed, it can be stacked in the hold, leaving substantially more floor space for your full ULDs and making a significant contribution to your sustainability goals.
