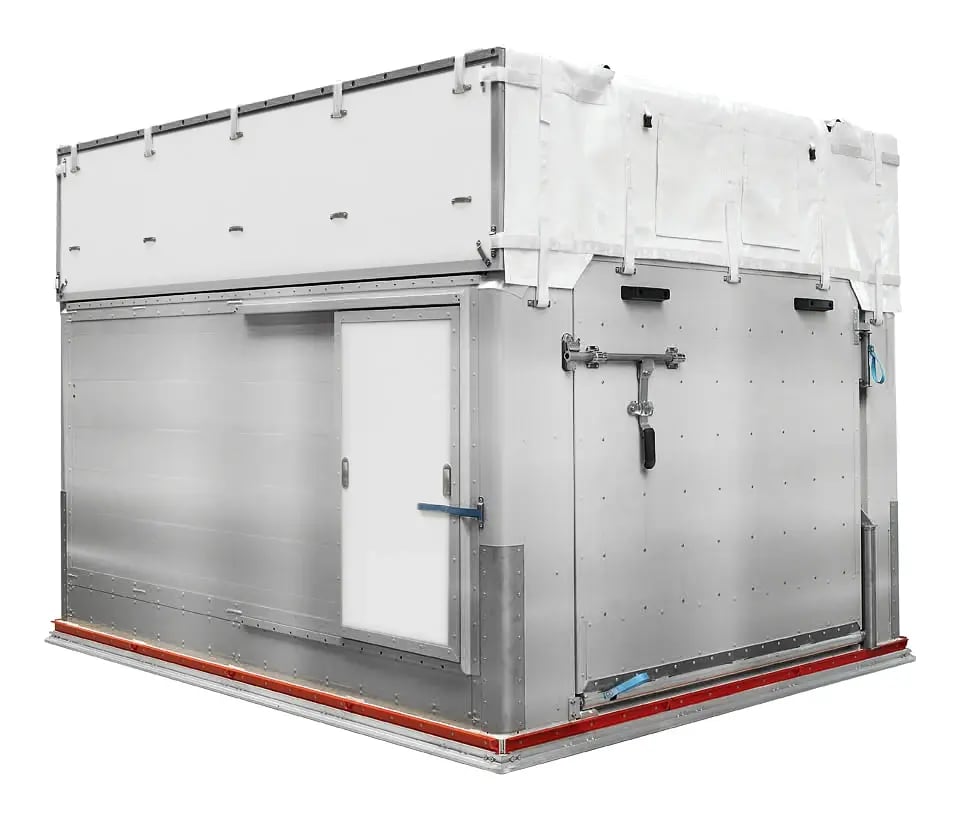

The HMJ ULD is the safest and most comfortable horse stall in our range. It’s also the most flexible. Thanks to its adjustable contour, the HMJ fits several wide-body aircraft and a number of narrow-body aircraft.
The roof structure has been designed so that each side can be adjusted independently, allowing loading to take place from both the left and right. This allows the horse air transport to always face forward when flying.

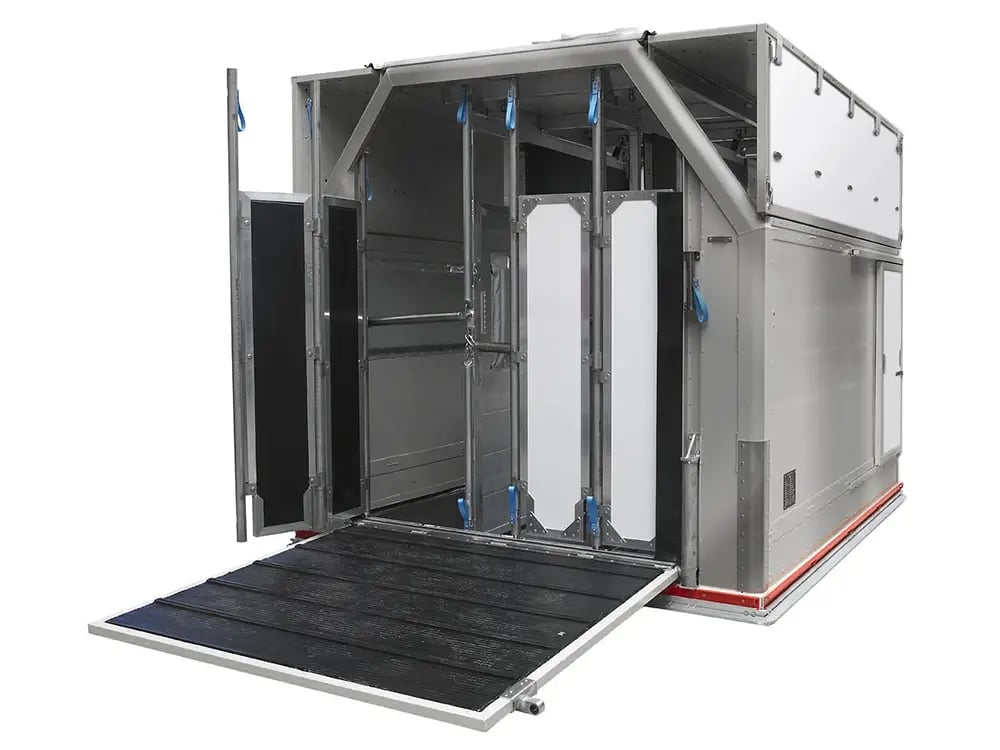

In addition, the unique door-and-ramp system opens both vertically and horizontally, making the cleaning and loading much easier.
Base size (L x W)
3,175 mm x 2,438 mm
125 inch x 96 inch
External dimensions (L x W x H)
3,175 mm x 2,438 mm x 2,440 mm
125 inch x 96 inch x 96,1 inch
4.96 m² / 53.4 ft²
1,410 kg / 3,108 lb
Max. gross weight
6,804 kg / 15,000 lb
Max. net weight
5,394 kg / 11,892 lb
You’ve studied the technical data sheet, browsed the operating manual and seen the price list, so you know the HML or HMR is the right container for you (and your horse). The next step is a personalised quotation. That’s easy. Just give us a few details, and our sales engineers will produce one for you. In addition to the price, you’ll receive product specifications, a technical proposal and delivery times.
If you’re looking for a J-contour container, but are not planning to bring back your horses, check out our HML/HMR model. This collapsible stall, which can be positioned left or right on the main-deck of wide-body aircraft, can be folded into stackable units for lower-deck return transportation. You get to cut the cost of returning empty stalls and you make it much easier to reposition for storage.
