Meet our general air cargo containers

Welcome to our general-purpose air cargo containers, where practicality meets expert engineering. The shapes and sizes may be standardised; the build is definitely not. Each certified ULD is designed with operational efficiency and aircraft compatibility in mind, offering you quick and easy loading access, maximum internal cargo volume, effective cargo protection and excellent durability.

Download brochure

Operational Efficiency

Making the loader's life easy

Superior durability
Ensuring a long life

Complete protection
Keeping your cargo safe

AAP

External dimensions (L x W x H)

3,175 x 2,235 x 1,615 mm
125 x 88 x 63.58 inch

Weight

Tare weight = 213 kg / 470 lb
Max. gross weight = 6,033 kg / 13,300 lb
Nett weight = 5,820 kg / 12,831 lb

AAX

External dimensions (L x W x H)

3,175 x 2,235 x 2,352 mm
125 x 88 x 92.6 inch

Weight

Tare weight = 278 kg / 613 lb
Max. gross weight = 6,804 kg / 15,000 lb
Nett weight = 6,526 kg /14,387 lb

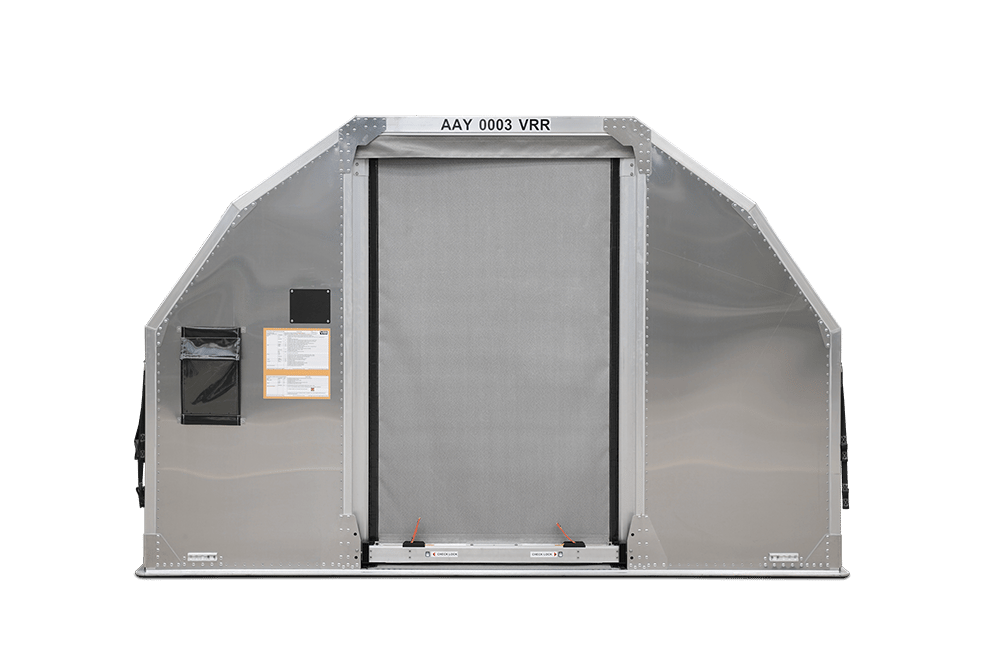

AAY

External dimensions (L x W x H)

3,175 x 2,235 x 2,026 mm
125 x 88 x 80 inch

Weight

Tare weight = 245 kg / 540 lb
Max. gross weight = 6,804 kg / 15,000 lb
Nett weight = 6,559 kg / 14,460 lb

ABZ

External dimensions (L x W x H)

2,743 x 2,235 x 1,656 mm
108 x 88 x 65.2 inch

Weight

Tare weight = 217 kg / 478 lb
Max. gross weight = 3,780 kg / 8,333 lb
Nett weight = 3,563 kg / 7,855 lb

AMA

External dimensions (L x W x H)

3,175 x 2,438 x 2,435 mm
125 x 96 x 95.9 inch

Weight

Tare weight = 305 kg / 672 lb
Max. gross weight = 6,804 kg / 15,000 lb
Nett weight = 6,499 kg / 14,327 lb

AMJ

External dimensions (L x W x H)

3,175 x 2,438 x 2,435 mm
125 x 96 x 95.9 inch

Weight

Tare weight = 300 kg / 661 lb
Max. gross weight = 6,804 kg / 15,000 lb
Nett weight = 6,504 kg / 14,339 lb

AMV

External dimensions (L x W x H)

3,175 x 2,438 x 2,432 mm
125 x 96 x 95.75 inch

Weight

Tare weight = 288 kg / 635 lb
Max. gross weight = 6,804 kg / 15,000 lb
Nett weight = 6,516 kg / 14,365 lb

AMX

External dimensions (L x W x H)

3,175 x 2,438 x 2,985 mm
125 x 96 x 117.52 inch

Weight

Tare weight = 529 kg / 1,166 lb
Max. gross weight = 6,804 kg / 15,000 lb
Nett weight = 6,275 kg / 13,834 lb

LAY

External dimensions (L x W x H)

3,175 x 2,235 x 2,206 mm
125 x 88 x 79.8 inch

Weight

Tare weight = 241 kg / 513 lb
Max. gross weight = 6,804 kg / 15,000 lb
Nett weight = 6,563 kg / 14,469 lb

Features

Aluminimum walls

Cover door

Sliding door

Collapsible shelf

Options

Bergo floor

Improved fire resistance properties

Roll-up door

Currently being developed

Get your free, no-obligation quote

You’ve studied the technical data sheet, 3D model and all the options, so you know which one of our General Cargo containers is the right one for you. The next step is a personalised quotation. That’s easy. Just give us a few details, and our sales engineers will produce one for you. In addition to the price, you’ll receive product specifications, a technical proposal and delivery times.

Yes, I want a personalised quote

Operational efficiency

Our design engineers work hard to make a loader’s life easier by minimising the time it takes to access and close the containers. Consequently, our door entrances are made as large as possible.

Superior durability

To ensure our containers survive the rigours of air transport, we use high-quality aluminium alloys and custom-designed extrusions. And if a container ever gets damaged? The material and design make repair easy and affordable.

Optimal volume

We maximise the internal volume of all our containers based on innovative design concepts. We can equip our larger containers with interior components to make the most of the available space and protect the cargo against the pressure.

Complete protection

Your cargo will stay safe and dry throughout its journey with our weatherproof and theftproof containers. What’s more, with no sharp edges anywhere on the inside, there’s no risk of torn and damaged goods.

Checklist for buying reliable and sustainable ULDs

There are many things to take into consideration when buying ULDs. Next to the safety and security of your consignment there are two other elements that are fast becoming an urgent priority in the air cargo world: Sustainability and reliability. With this free checklist we'll help you set your priorities and take the right things into consideration.

Download the checklist

The benefits of collapsible containers

Looking to reduce ULD repositioning costs and carbon emissions?

Now you can. By shrinking the size of your containers, not their capacity. Our collapsible AAX and AAY carry the same volume of cargo as a standard version of this container. It also meets exactly the same airworthiness requirements. However, when collapsed, it can be stacked in the hold, leaving substantially more floor space for your full ULDs and making a significant contribution to your sustainability goals.

Check out the collapsible ULDs

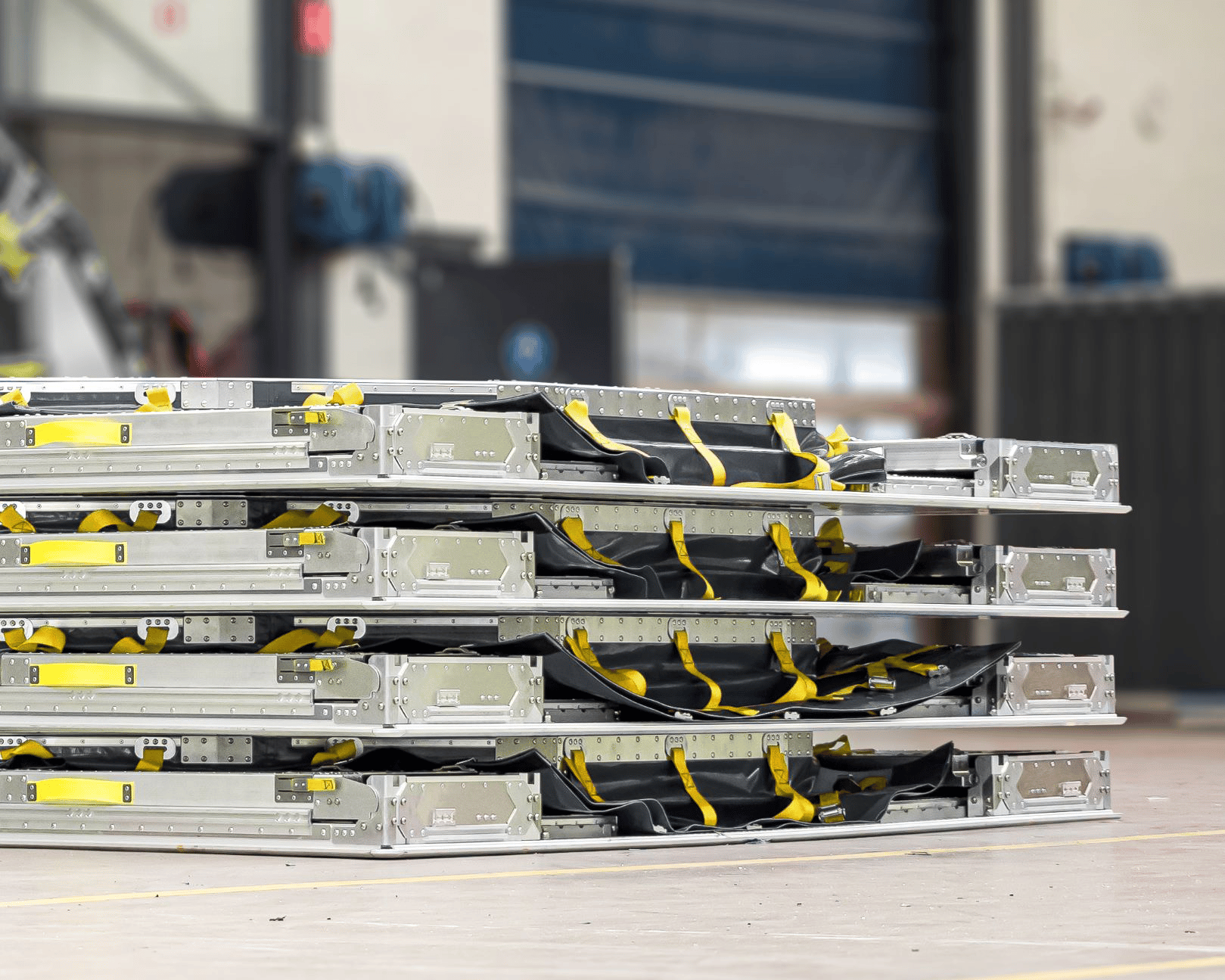

AAY collapsible container ULD stacked

What does the three letter ULD code mean?

The first letter represents the type of ULD
The second letter represents the base size of the ULD
The third letter represents the container’s contour or the pallet’s restraint system

For more information, please visit our detailed explanation.

What advantages does a container have compared to a pallet/net combination?

Containers have many advantages, including:

Easier loading and unloading of cargo into the container;
Easier loading onto and unloading off an aircraft;
Better protection against all kinds of weather;
Better protection against damage to the cargo;
Better protection against damage to the aircraft by the cargo;
Prevention of unauthorised access to the cargo.

How do I choose the perfect ULD for my operation?

If you’re unsure which ULD fits perfectly with your (cargo) fleet, you can consult our compatibility tool. It gives you an overview of all standard ULDs and aircraft types. Select one or more of the aircraft or click on the relevant ULD and you will be taken to an overview that lists all compatible aircraft or ULDs.

Are your containers weatherproof?

Yes, all ULDs are designed to be fully weatherproof to ensure the cargo arrives in perfect condition.

Can your containers be repaired easily?

Yes, the containers are designed so that parts are easy to obtain and replace.

Are all your ULDs certified?

VRR can deliver both certified and uncertified ULDs. If you would like to know the difference between a certified and uncertified ULD and understand their respective advantages, please read our detailed explanation.
