AKE/QKE Container

Why choose if you can have everything?

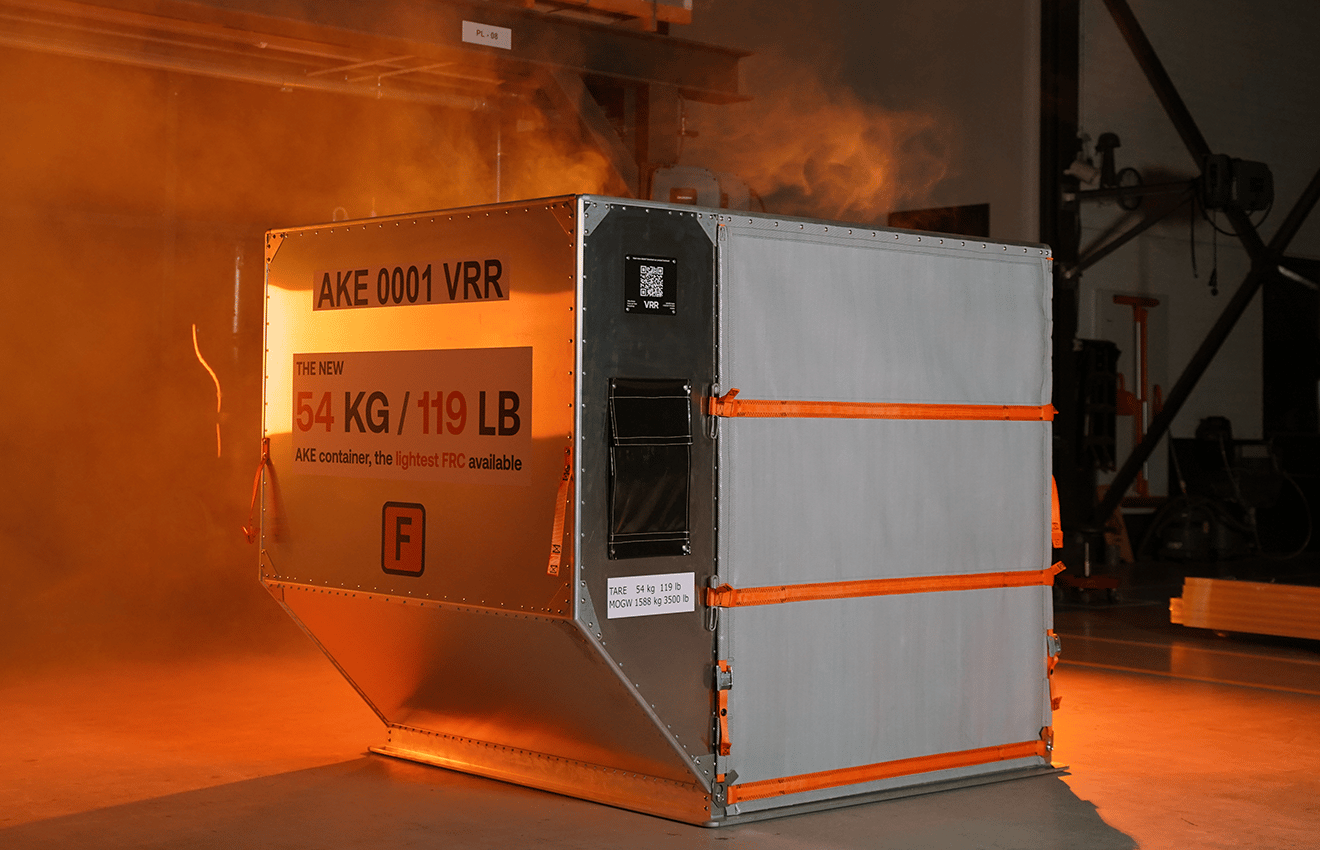

Meet our new fire resitant AKE (LD3) air cargo container,
also known as the QKE.

Lightweight by design. Fire-resistant by default.
Designed for everyday operations.

Everything you expect from an AKE, plus everything we believe should come as standard.

Download the brochure

Go to the specs

Everything. As standard.

When it comes to people, cargo and safety, we don't believe in compromises.

The VRR AKE starts at 54 kg, comes with Class A fire resistance as standard and is designed around everyday operations.

But not every operation asks the same from an AKE. For some, every kilogram counts. Others need more robustness for intensive everyday use. So we made the AKE available in different configurations, while keeping Class A fire resistance standard across the range.

Want to compare the different configurations? Download the product brochure.

Lightweight by design

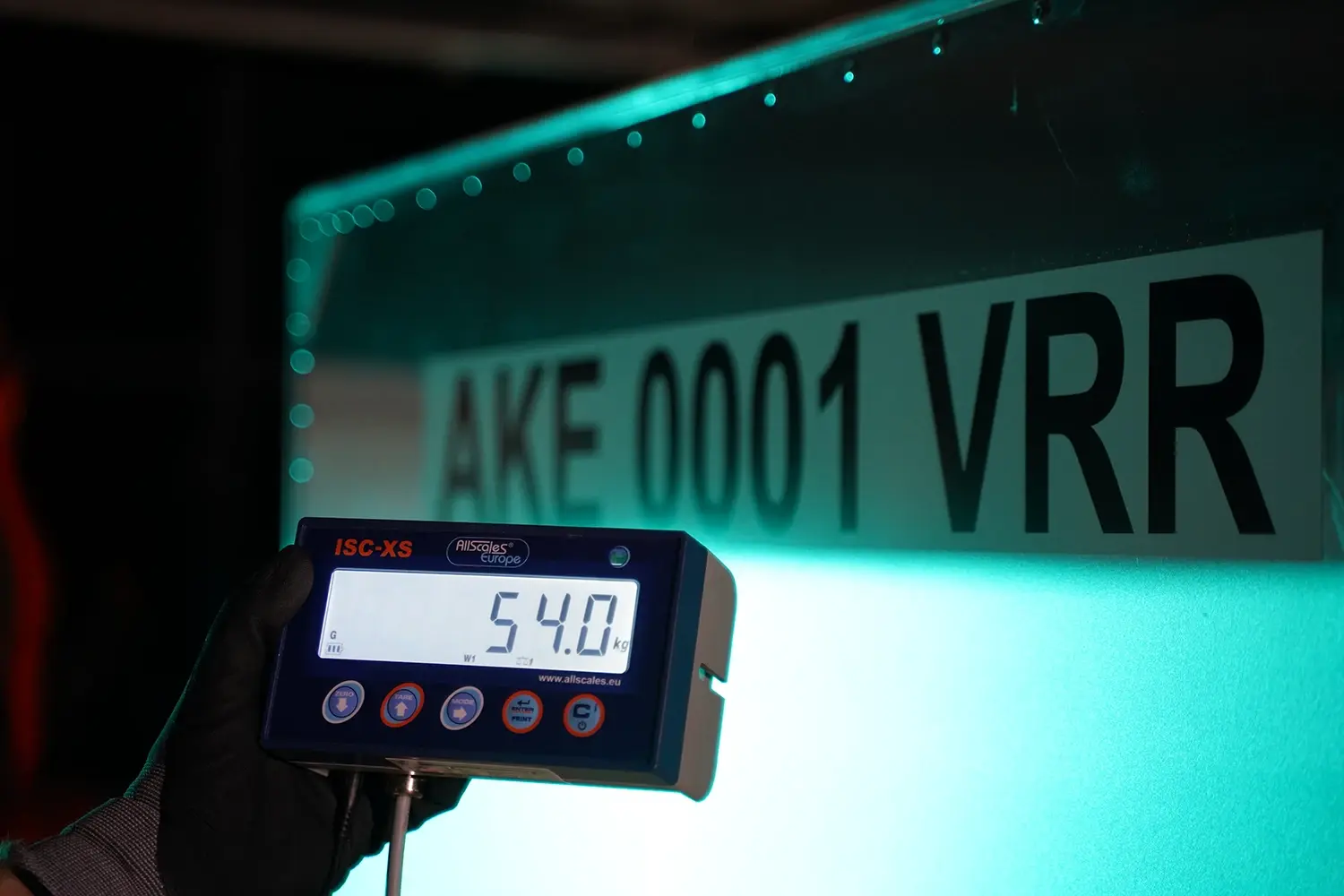

Starting at 54 kg.
Every kilogram counts. That's why the VRR AKE was designed with weight in mind from the start, reducing the weight carried on every flight.

Fire-resistant by default

Class A. Six hours of containment.
Fire resistance shouldn't be an optional upgrade. That's why every VRR AKE (QKE) comes with Class A fire resistance as standard, providing six hours of containment. Tested according to SAE AS8992.

Built for everyday operations

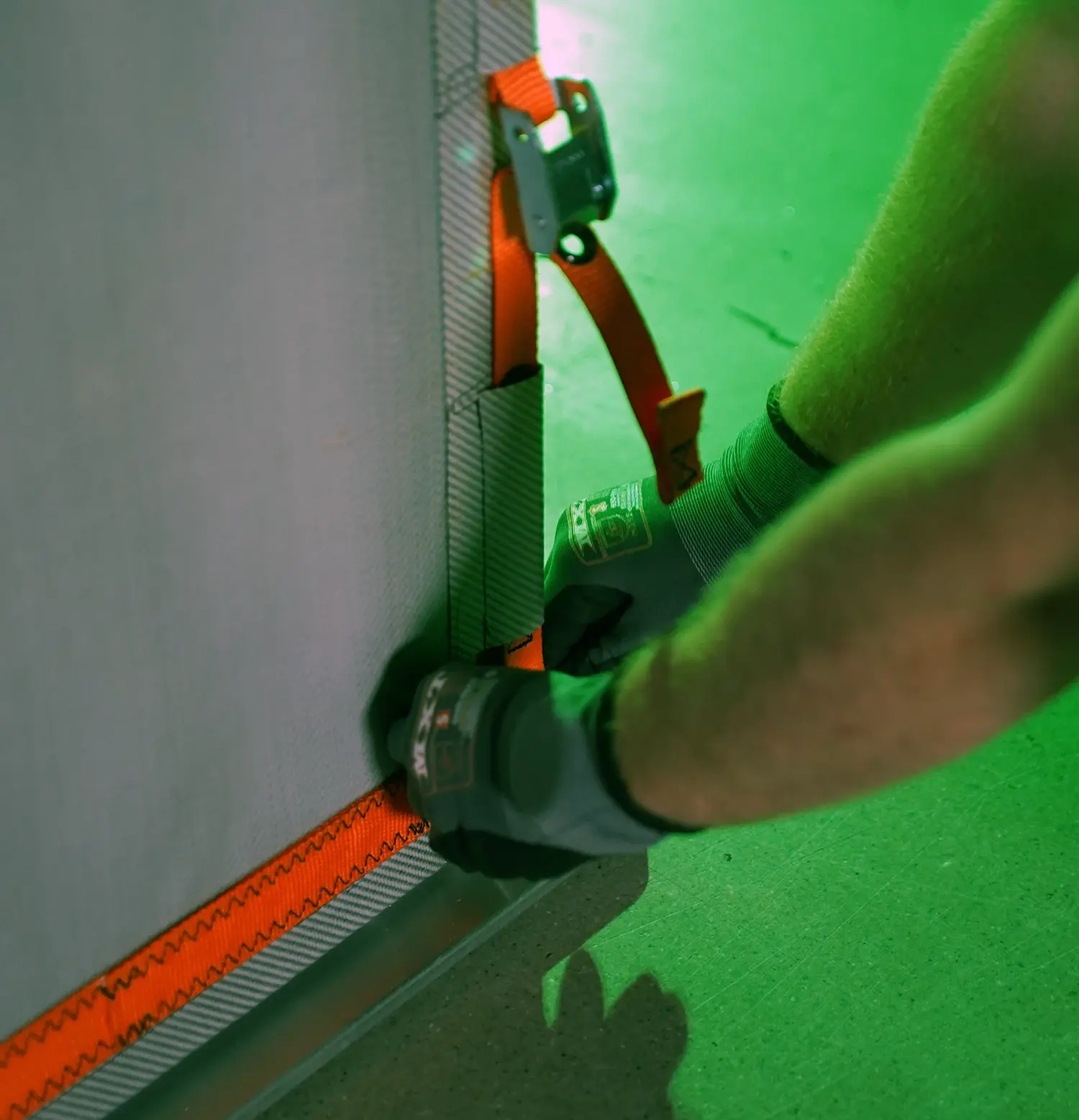

Open and close in seconds
Intuitive and easy door operation makes everyday handling faster and more straightforward. Designed for reliable operation in all operating conditions, by the people who use it every day.

Lightweight by design

Starting at 54 kg.
Every kilogram counts. That's why the VRR AKE was designed with weight in mind from the start, reducing the weight carried on every flight.

Fire-resistant by default

Built for everyday operations

Product Specifications

The VRR AKE (QKE/LD3) is a lightweight, fire-resistant Unit Load Device designed for lower-deck air cargo operations. Explore its key specifications, including weight, dimensions and door opening

Want the complete technical details? Download the product brochure for detailed specifications and certification information.

Download brochure

Get in touch

Weight

Tare weight

54 kg / 119 lb

Max. gross weight

1588 kg / 3500 lb

Nett. weight

1534 kg / 3381 lb

Door Opening

1393 mm x 1546 mm
54.8 inch x 60.9 inch

Dimensions

Base size (L x W)

1561 x 1534 mm
61.5 x 60.4 inch

External dimensions
(L x W x H)

1993 x 1534 x 1613 mm
78.4 x 60.4 x 63.5 inch

What is an AKE container?

An AKE is a certified aircraft container used to transport baggage and cargo in the lower deck of an aircraft. It is a type of Unit Load Device (ULD) and is also commonly referred to as an LD3 container.

Is an AKE the same as an LD3 container?

Yes. LD3 is the ATA designation, while AKE is the IATA identification code commonly used for this container type.

How much does the VRR AKE weigh?

The VRR AKE starts at 54 kg (119 lb), depending on the configuration. Its lightweight design helps reduce the weight carried on every flight, contributing to lower fuel consumption and environmental impact.

Is the VRR AKE fire-resistant?

Yes. Class A fire resistance comes as standard on every VRR AKE, providing six hours of fire containment. The AKE is certified to ETSO-C90d and tested according to SAE AS8992.

Is fire resistance optional on the VRR AKE?

Class A fire resistance comes as standard on every VRR AKE. Safety shouldn't be an upgrade. That's why six hours of fire containment is built into the AKE from the start, at no additional cost. Because when it comes to safety, why choose?

What are the dimensions of the VRR AKE container?

The VRR AKE has a base size of 1561 x 1534 mm / 61.5 x 60.4 inch and external dimensions of 1993 x 1534 x 1613 mm / 78.4 x 60.4x 63.5 inch. The maximum gross weight is 1,588 kg (3,500 lb).

For all technical dimensions and specifications, see the product specifications above or download the AKE product brochure.

Which aircraft are compatible with an AKE/LD3 container?

The AKE/LD3 is designed for lower-deck air cargo operations and is compatible with a range of wide-body aircraft. Use VRR's aircraft compatibility tool to check the optimal fit for your fleet.

How is the VRR AKE tested?

The VRR AKE undergoes extensive testing, including full-scale load testing, operational impact testing and fire-resistance testing, to validate its performance before entering operation.

Want to know more about how we validate our ULDs? Read how VRR tests its designs for safety, strength and compliance.

Is the VRR AKE repairable?

Yes. The VRR AKE is designed with repairability and a long asset life in mind, helping keep the container in operation for longer. VRR considers weight, durability, waste, recyclability and the overall product life cycle when developing new ULDs.

Can the VRR AKE be customised?

The VRR AKE is available with different options to fit your operational needs. Download the brochure to explore all available configurations and customisation options.
